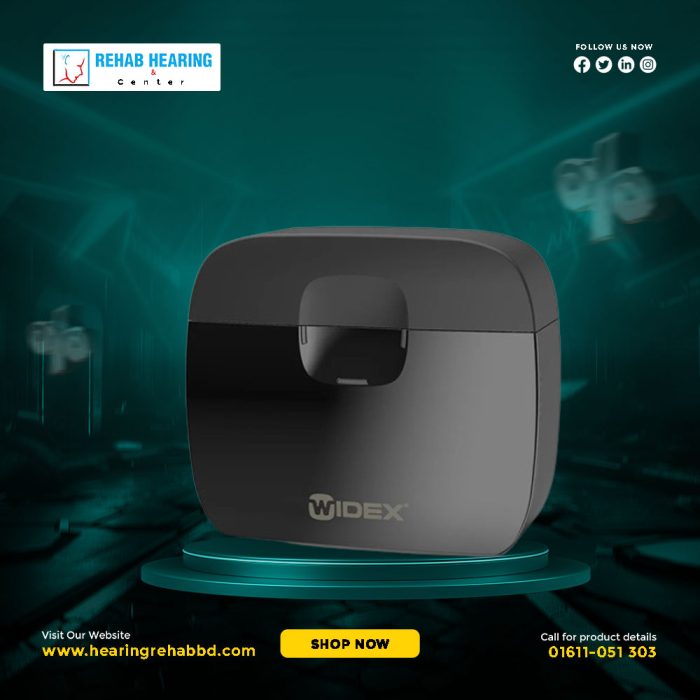

Widex MRR4D/MRR2D CHARGE N CLEAN WPC101 Price 22,000/- taka in Bangladesh

Unboxing

IMPORTANT SAFETY INFORMATION

Read these pages carefully before you start using your charger.

• Keep the charger and other small parts away from children, pets, and mentally disabled people.
• Never expose the charger to temperatures above 60° C (140° F), to prolonged sunlight, open flames or ignition sources.
• Place the charger upright on a flat, stable surface when charging, with adequate space around the charger. Do not cover or place near flammable substances. This also applies when using a power bank.
• Never try to open or repair the charger yourself. Contact your hearing care professional if you experience defects.
• Use only a Widex charger with your hearing aids. Use of a charger not recommended by WIDEX A/S may compromise the system or result in dangerous situations.
• Never leave the charger in direct sunlight and do not immerse it in water.
• Never insert other objects than your hearing aids in the charging wells.
• Use only a Widex power adapter and cable with your charger.

YOUR CHARGER

Welcome Thank you for choosing this product. Your new CHARGE n CLEAN charger is intended to detect, charge and maintain your MRR2D hearing aid. Read these instructions carefully before you start using this device. NOTE Your charger may not look exactly like the one illustrated in this booklet. We reserve the right to make any changes we consider necessary. The charger at a glance The charger consists of a charging unit for each hearing aid, a maintenance compartment for the receivers and a light indicator with three indicator lights that show the charging status of the hearing aids and the status of the maintenance cycle.

1. Micro USB port
2. Left hearing aid charging well
3. Right hearing aid charging well
4. Maintenance compartment for the receivers
5. Left hearing aid charging indicator light
6. Right hearing aid charging indicator light
7. Maintenance indicator light.

Operating, storage and transport conditions

Your charger is designed for indoor use. It is sensitive to extreme conditions such as high temperatures, and it should not be operated, stored or transported in direct sunlight. Operate the charger within the following conditions:

Store and transport the charger within the following conditions:

OPERATING THE CHARGER

Getting ready for use Power supply For optimal operation, connect your charger to the mains and use only the included cable and power supply. Please make sure that the USB port is USB 2.0 compatible. Connect the cable to the charger: Power on When the charger is connected to the power supply, the indicator lights flash white 5 times and then turn off; The charger is now in standby mode and ready to charge your hearing aid.

Charging the hearing aid

Gently place your hearing aids in their respective charging wells and the receivers in the maintenance compartment. The hearing aids turn off automatically. Then close the lid. When connected to the power supply, the charger can charge two hearing aids simultaneously. Depending on the state of the hearing aids, each hearing aid can also be charged individually. If one hearing aid is fully charged and placed in the charger, it will not charge, but the other hearing aid, which is not fully charged, will be charged. Charging your hearing aid fully will take approximately 4 hours. If you charge your hearing aid for half an hour, you will have approximately 4 hours of use. While charging the hearing aids, the maintenance (Ultraviolet-C treatment and drying) is carried out. The maintenance cycle takes 30 minutes. Charging indicators While the charger is detecting the hearing aid, the light indicator turns solid yellow: Once the charger has detected the hearing aid, the charging will begin. The light indicator will flash green to indicate that the hearing aid is low on battery and less than 40% charged: The light indicator will glow green to indicate that the hearing aid is more than 40% charged: The light indicator will turn solid green to indicate that the hearing aid is 100% charged:

After charging

Avoid removing the hearing aids from the charging wells by pulling the earwire, as this could damage the connection between the earwire and the hearing aid. Instead, put your fingers around the hearing aid when removing it from the charger. When you remove the hearing aid from the charger, the hearing aid turns on after a few seconds. Remember to turn it off if you are not going to use it right away. Immediately after charging, the hearing aid may temporarily feel warm. If you are not comfortable with this, wait a few minutes for the hearing aid to reach room temperature, before putting the hearing aid on.

Maintenance

The light indicator will flash white to indicate that the maintenance cycle is in progress (Ultraviolet-C treatment or drying): The light indicator turns solid white to indicate the end of the maintenance cycle: If the lid is opened during the maintenance cycle, the cycle is paused but the charging continues. The maintenance cycle will restart when the lid is closed.

Overview of indicator lights

Charging

Indicator lights	Status
Solid yellow	The charger is detecting the hearing aid.
Flashing green	The hearing aid is charging. Low battery, less than 40%.
Glowing green	The hearing aid is charging. Battery more than 40%.
Solid green	The hearing aid is fully charged. Battery 100%.
One indicator flashing red	An error occurred during charging and the charging has stopped.

Indicator lights	Status
Both indicators flashing red	An error occurred during charging and the charging has stopped. See Troubleshooting.
Flashing yellow	The temperature of the hearing aid has become too high during charging and charging is paused. See Troubleshooting.

Maintenance

Indicator lights	Status
Flashing red	The maintenance cycle is in progress (Ultraviolet-C treatment or drying).
Solid white	The maintenance cycle is complete.
Solid yellow	The maintenance cycle is paused but the charging cycle continues.
Flashing red	An error occurred during the maintenance and the cycle has stopped.
Flashing yellow	The maintenance cycle is paused due to overheating (fan still running).

Cleaning

The charger does not generally require cleaning. If necessary, carefully wipe off the charger with a soft dry cloth. If you notice any dust in the charging well, gently blow it clean. If this is not enough, gently clean the charging well with a cotton bud. To remove earwax from the charger, carefully wipe with a soft cloth with a bit of mild household detergent. Never use sharp/pointy objects to clean the charger.

TROUBLESHOOTING

These pages contain advice on what to do if your charger does not work as expected.

Light indicators	Possible cause	Solution
No lights	The charger is not connected.	Make sure that the USB cable is correctly connected to the charger and a USB 2.0 compatible USB port or plug the USB cable into the wall socket using the included power adaptor.
	The hearing aid is not placed correctly in the charger.	Place the hearing aid correctly in the charger.
Right and/or left indicators flashing yellow	The temperature of your surroundings or of the hearing aid exceeds a critical limit and the charging is paused.	The charging will continue when the temperature of your surroundings or the hearing aid has dropped. If this happens continually, find a cooler place to charge your hearing aid.
Right or left indicator flashing red	The charger cannot recognise the hearing aid	Remove the incompatible hearing aid.
	The hearing aid has a critical error.	Remove the hearing aid, disconnect from the power for 10 seconds and then try again. If the charger is still flashing red, contact your hearing care professional.
Central indicator flashing red	The maintenance cycle has a critical error.	Remove the hearing aid, disconnect from the power for 10 seconds and then try again. If the charger is still flashing red, contact your hearing care professional.
Right and left indicators flashing red	The charger has a critical error.	Remove the hearing aid, disconnect from the power for 10 seconds and then try again. If the charger is still flashing red, contact your hearing care professional.
